A/C RRR Service
R-134A Units

Robinair's R-134A combines simple operation with superior accuracy. The units will test, recover, and recharge R-134A automotive A/C systems quickly and accurately.

Standards on all Robinair R-134A units:

1.5 CFM dual-stage vacuum pump (single-stage on 34288NI)

30-lb DOT internal tanks (22-lb DOT on 34288NI)

9’ SAE J2886 hoses (9’ SAE J2196 on 34288NI)

150-lb (68kg) spin-on filter, P/N 34724

Integrated cord wrap

Unmatched minimum 98.5% refrigerant recovery

Charging accurate to within +/- 0.5 oz

34288NI

Economy R-134A Recover, Recycle, Recharge Unit

The Robinair 34288NI unit combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Compatible with accessory printer 30038.

Wi-Fi and Bluetooth Accessories:

Upgrade your machine with Wi-Fi and Bluetooth capability with 80211VCI Wireless Master Kit. The kit includes a USB Wi-Fi/Bluetooth adapter and software update SD card to enhance your machine. After installed, use the included OBDII dongle and refrigerant capacity database to read VIN, YMME and automatically pull refrigerant and oil capacities.
After your machine is upgraded, add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
For temp probes only, purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which includes the same USB/Wi-Fi Bluetooth adapter and software update SD card to enhance your machine as the 80211VCI kit.

robinair-34288ni-economy-r-134a-recover-

34788NI

Premier R-134A Refrigerant Recovery, Recycling, and Recharging Unit

The Robinair 34788NI unit recovers, recycles, evacuates, leak-tests and recharges R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a larger graphical display, automatic features including leak testing, automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. 34788 also boasts the ability to add a printer, USB data sharing, refrigerant identifier and wireless module for Wi-Fi or Bluetooth® communication. An optional refrigerant charge and oil capacities database is available for North American market vehicles.

Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves.
Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace.
Oil Inject: Automatically inject oil back into the vehicle’s A/C systems.
Refrigerant & Oil Database: A/C system capacities for North American market vehicles (Optional – not included with the machine)
Save & print before and after service data: Allows the user to store before and after service information by vehicle and print this information to provide to a customer.
Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred.
Vacuum Leak Test: Monitors level after evacuation, informs of possible leak.
Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves.
Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required.
Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.

Display: Multilingual
Refrigerant Charging: Select a charge mode from high or low side, or use both sides.
Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
Optional Printer: Compatible with accessory printer 30038

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Wi-Fi and Bluetooth Accessories:

Upgrade your machine with Wi-Fi and Bluetooth capability with 80211VCI Wireless Master Kit. The kit includes a USB Wi-Fi/Bluetooth adapter and software update SD card to enhance your machine. After installed, use the included OBDII dongle and refrigerant capacity database to read VIN, YMME and automatically pull refrigerant and oil capacities.
After your machine is upgraded, add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
For temp probes only, purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which includes the same USB/Wi-Fi Bluetooth adapter and software update SD card to enhance your machine as the 80211VCI kit.

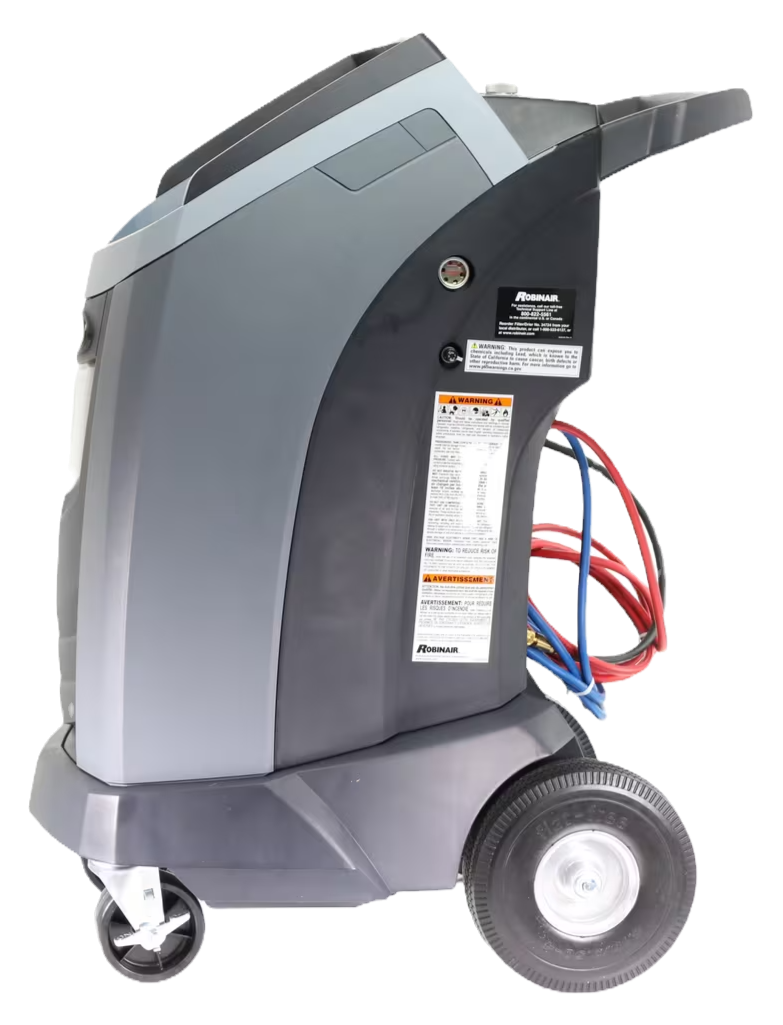

34788NI-H

Premier R-134A Refrigerant Recovery, Recycling, and Recharging Unit for Hybrid and Non-Hybrid Vehicles

The Robinair 34788NI-H unit recovers, recycles, evacuates, leak-tests and recharges

R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a larger graphical display, automatic features including leak testing, automatic refrigerant refill and oil drain. It also boasts the ability to add a printer, USB data sharing, refrigerant identifier and a wireless module for Wi-Fi or Bluetooth® communication. An optional refrigerant charge and oil capacities database is available for North American market vehicles.

Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves.
Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace.
Oil Inject: Automatically inject oil back into the vehicle’s A/C systems.
Refrigerant & Oil Database: A/C system capacities for North American market vehicles (Optional – not included with the machine)
Save & print before and after service data: Allows the user to store before and after service information by vehicle and print this information to provide to a customer.
Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred.
Vacuum Leak Test: Monitors level after evacuation, informs of possible leak.
Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves.
Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required.
Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
Display: Multilingual
Refrigerant Charging: Select a charge mode from high or low side, or use both sides.
Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
Optional Printer: Compatible with accessory printer 30038

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Wi-Fi and Bluetooth Accessories:

Upgrade your machine with Wi-Fi and Bluetooth capability with 80211VCI Wireless Master Kit. The kit includes a USB Wi-Fi/Bluetooth adapter and software update SD card to enhance your machine. After installed, use the included OBDII dongle and refrigerant capacity database to read VIN, YMME and automatically pull refrigerant and oil capacities.

After your machine is upgraded, add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
For temp probes only, purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which includes the same USB/Wi-Fi Bluetooth adapter and software update SD card to enhance your machine as the 80211VCI kit.

34988NI

Premium R-134A Refrigerant Recover, Recycle, and Recharge Unit

The new Robinair 34988NI Premium A/C Machine combines ease of use and superior accuracy. It recovers, recycles, evacuates, leak tests and recharges R-134a vehicle systems quickly and accurately. The fully automatic function will recover, vacuum, leak test and charge on its own without the need to stand and monitor the machine. The product is fully SAE J2788 compliant and exceeds the requirements for charge accuracy and recovery efficiency. Robinair's patented automatic refrigerant refill feature maintains a user-selectable amount of refrigerant in the internal vessel and signals when it’s time to change supply tank, no monitoring required.

The 34988NI will automatically add oil if necessary using load cells that measure the amount of oil removed from the system and automatically putting the right amount of

A/C lubricant back into the system, make the 34988NI the only true fully automatic machine available today. The new 34988NI now comes with two separate oil inject bottles so two different types of oil can be stored and injected making it easy and convenient as technicians service different vehicles. A large, easy-to-read color display and a printer are standard upgrades on the new 34988NI. It also has the capability to inject UV dye into the vehicle's A/C system for leak detection and making any future maintenance easier. An optional refrigerant charge and oil capacities database is available for North American market vehicles which saves time from having to look up unknown charge amounts.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Wi-Fi and Bluetooth Accessories:

Upgrade your machine with Wi-Fi and Bluetooth capability with 80211VCI Wireless Master Kit. The kit includes a USB Wi-Fi/Bluetooth adapter and software update SD card to enhance your machine. After installed, use the included OBDII dongle and refrigerant capacity database to read VIN, YMME and automatically pull refrigerant and oil capacities.
After your machine is upgraded, add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
For temp probes only, purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which includes the same USB/Wi-Fi Bluetooth adapter and software update SD card to enhance your machine as the 80211VCI kit.

34998

Connected R-134A ACS Unit

The Robinair 34998 Connected R-134a ACS Machine recovers, recycles, evacuates, leak-tests and recharges R-134a with improved 98.5% efficiency – unmatched by any competitor. The new design features a large 105" capacitive touch LCD display, and automated features including automatic internal refrigerant refill, oil drain and inject, and UV dye inject.

The 34998 also boasts full wireless capabilities for Wi-Fi or Bluetooth® communication, which enables automatic machine software updates and optional refrigerant capacities database downloads, database purchased separately. Use Mopria Print Service wireless printing to print A/C service summary reports for customers or insurance companies. The Android operating system can also export service reports to store or share digitally.

The Wi-Fi-enabled machine also effectively manages and stores machine metrics and data related to services performed with the ACS machine to add to vehicle service reports.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Wi-Fi and Bluetooth Accessories:

Enhance your machine’s capabilities with the ACS-250 and 34001 refrigerant capacity database. Pairing an ACS-250 and database enables your machine to read VIN, YMME and automatically pull refrigerant and oil capacities. This info is added to vehicle service reports for customers or insurance companies, and auto-fills refrigerant capacity when recharging a vehicle system.
Add the 80212 2-pack Bluetooth Temperature Probes to read and display multiple vent temperatures. Vent temps can be added to before and after service reports, confirming a repair and recording temperature differences.
Wireless accessories add service information to your customer or insurance company reports, helping verify and confirm the need for A/C system service.

Robinair_34998_Dashboard_Left_0 (1)_edited.png

Features	34288NI	34788NI	34788NI-H	34988NI	34998
WiFi / Bluetooth Capability & Free WiFi Software Updates	Yes, requires 80211TMP or 80211VCI master kit	Yes, requires 80211TMP or 80211VCI master kit	Yes, requires 80211TMP or 80211VCI master kit	Yes, requires 80211TMP or 80211VCI master kit	Yes, enabled from the factory
Fully-Automatic Functionality	Semi-automatic, manual valves	Yes	Yes	Yes	Yes
Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it's time to change supply tank, no monitoring required	No	Yes	Yes	Yes	Yes
A/C System Refrigerant Flush (Flushing adapters not included)	No	Yes	Yes	Yes	Yes
Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins; "Remaining time" is displayed	Yes	Yes	Yes	Yes	Yes
Automatic Dye Inject: 1/4-oz during recharge, user-selectable	No	No	No	Yes	Yes
Automatic Oil Drain: Shows amount of oil to replace	Yes	Yes	Yes	Yes	Yes
Automatic Oil Inject, user-programmable	18480 or 18490, syringe required	Yes, uses one oil bottle	18480 or 18490, syringe required	Yes, includes two oil bottles and one UV dye bottle	Yes, includes two oil bottles and one UV dye bottle
Automatic Air Purge: Removes potential of air accumulating in the internal tank	Yes	Yes	Yes	Yes	Yes
Vacuum Leak Test and Monitoring	No	Yes	Yes	Yes	Yes
Display	4.3" 480 x 272 QVGA Color LCD	4.3" 480 x 272 QVGA Color LCD	4.3" 480 x 272 QVGA Color LCD	7" Graphical LCD	10.5" hi-resolution touch screen
Multilingual	Yes	Yes	Yes	Yes	Yes
Refrigerant Charging	Low side only	High, low or both sides	High, low or both sides	High, low or both sides	High, low or both sides
Refrigerant and Oil System Capacity Database for North American Market Vehicles	Optional, 34412-E	Optional, 34412-E	Optional, 34412-E	Optional, 34412-E	Optional, 34001
Save, Print, and Store: Before and after service data	No save, optional printer 30038	Yes, optional printer 30038	Yes, optional printer 30038	Yes, printer included	Yes, Mopria Print Service wireless printing
Refrigerant Management System: Displays refrigerant use and monitors remaining filter life; Prompts appear when 1/3 of filter life remains	Yes	Yes	Yes	Yes	Yes
Electric Vehicles: Capable of servicing high voltage electric compressor A/C systems	No	No	Yes	No	No
Visual and Audible Alarm / Notifications	No	Yes	Yes	Yes	Yes

Specifications	34288NI	34788NI	34788NI-H	34988NI	34998
Operating Voltage	115V, 60 HZ	125 VAC, 60 HZ	125 VAC, 60 HZ	125 VAC, 60 HZ	125 VAC, 60 HZ
Pressure Gauges	80mm	100mm, EN-837-1	100mm, EN-837-1	100mm, EN-837-1	Digital display
Keyboard	Alpha-numeric with service function keys	Alpha-numeric with service function keys	Alpha-numeric with service function keys	Alpha-numeric with service function keys	Touchscreen virtual keyboard
Compressor	1/3 HP hermetic	3/8 HP, pressure-protected, oiled, hermetically sealed	3/8 HP, pressure-protected, oiled, hermetically sealed	3/8 HP, pressure-protected, oiled, hermetically sealed	3/8 HP, pressure-protected, oiled, hermetically sealed
SAE Compliance for R-134A	Yes, J2788 certified	Yes, J2788 certified	Yes, J2788H certified	Yes, J2788 certified	Yes, J2788 certified
